Vials
In chromatography, a wide variety of glass or plastic sample vials are used for analytical purposes. Since these are usually used in autosamplers or other automatic instruments, strict adherence to all dimensions is crucial for trouble-free operation in the instrument. In addition, the bottles must also meet requirements for inertness and purity. Here you will find GC and HPLC vials with flat, round and conical bottle bases as well as with different bottle necks, such as bottles with headspace rim and DIN rolled rim, threaded bottles, short threaded bottles and some more.
Detailed informations about vials can be found here.
Different types of vials
The handling of the processed samples also belongs to the sample preparation. For this purpose, the samples are transferred into suitable sample bottles with closure, from which the sample is directly applied and subsequently injected for analysis. After sample processing, the sample solution is transferred into a suitable sample vessel and sealed to prevent evaporation of the sample until the injection time. For an optimal analysis, it is also necessary to take into account the quality of the sample bottles and septa of the closures.

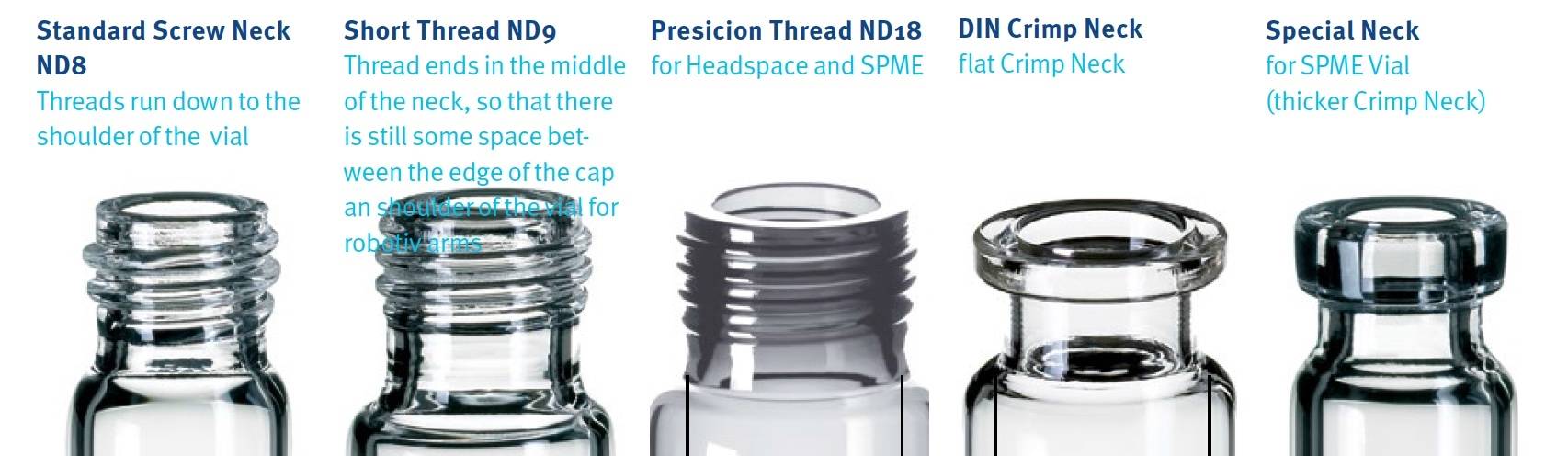

In our range, you will find bottles with the following bottlenecks:
- headspace edge (chamfered edge)
- DIN roll edge (flat edge)
- special roll edge for SPME bottle (thicker roll edge)
- snap ring, melted edge (flat bottom glass)
- short thread ND9
- fine thread ND18 for headspace and SPME
- snap lid edge (sample storage vessel, no autosampler bottle)
When designing the bottle bottom you can choose between the following bottoms:
- flat bottom
- rounded bottom (HS bottom)
- round bottom
- conical bottom
- solid glass bottom
- microliter bottle with inner cone
In the following excerpt from our current catalog you will find an overview of the most important bottle types listed above:
You can also find a selection of sample bottles with different bottoms designs in our Analytic Shop. An overview of the most important types is shown below:
Polypropylene vials and fluorine-free caps for PFAS analysis
The analysis of PFAS, for example in drinking water, is becoming increasingly important. When performing the analysis, the choice of the right vials and closures is crucial. Sample bottles made of PP are ideally suited for the analysis of PFAS. The adsorption effects are low with plastic bottles and the signal strengths of the analytes are high. Polypropylene bottles are therefore better suited for PFAS analysis than glass bottles or silanized glass bottles. Possible contamination by the plastic of the bottles or the septa material can be neglected: Even with PFBA, the detection rate is below 1 %.
| Volumen | ND | Höhe x Durchmesser | Modellvariante | Artikelnummer |
|---|---|---|---|---|
| 1,5 ml | 9 | 32 x 11,6 mm | screw neck vial with filling lines | MN702500 |
| 0,3 ml | 9 | 32 x 11,6 mm | screw neck vial with inner cone | MN702009 |
| 0,3 ml | 11 | 32 x 11,6 mm | snap ring vial with inner cone | MN702809 |
In order to optimally dissolve both short- and long-chain PFAS in the vessels, the sample solution should have a relative proportion of methanol of 40 - 60 %. Also, for reliable PFAS analysis fluorine-free septa are required to prevent any migration of fluorine into the sample. Suitable caps are e. g. fluorine-free N 9 screw caps or N 11 snap ring caps.
Base Bonded bottles with integrated micro insert from Altmann Analytik
The bottles with integrated micro-insert (glass-in-glass) are used as modern sample vessels in the field of microsampling. Versions with narrow or wide micro-inserts are available.
Altmann Analytik's ""Base Bonded"" microvials are a cost-effective alternative to the glass-in-glass "Top Bonded" microvials (with insert fused into the top), the Thermo Scientific SureStar vials and the so-called "TopSert" vials.
The advantages at a glance:
- Universally compatible with autosamplers (flat glass bottom and standard outer design; no adapter necessary)
- Safe to use: Safe retraction of the needle due to the fixed centring of the micro-insert
- Minimal dead/residual volume for valuable samples: <2µL
Altmann Analytik "Base Bonded" sample bottles are available as short thread ND9 or snap ring/rolled rim bottle ND11.
